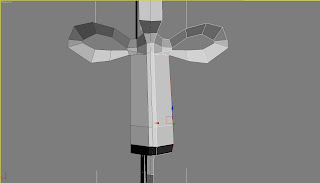

1. Nose
Go to the edge level and select all the edges belong to the nose, and drag them to the right by push the shift button.
Go to vertex level and move those new points backward. Here comes out two new points, target weld them to the main outline of head.
Cut two lines on the nose to build the basic shape, one is from the eye to the highest bone of nose.drag this line to the front. Other one is to build the part around the nostril. Drag this line to the backward.
at last, adjust all the vertexes on the nose part.
2. Mouth
Go to the edge level and select the edges on the mouth and oral cavity part, and drag them to the left by pushing the shift key, repeat three times to create the width of mouth, and move the new edge a little bit to backward when it is cloned each time, in order to creating the arc of the mouth. I will adjust this part all the time when I create the mouth.
Modify the upper lip on the vertex level, and make the connection at philtrum and mouth.
Do the same things to the other lip, and adjust all the points to the appropriate position. Latter I will fallow a photo to modify the mouth carefully.
human mouth is usually very rich, so next I am going to add two lines for each of lips between both of them. Select one edge under the upper lip and go to click ring to select all the edge on this level, and then connect them, do it on the other lip as well. Make both line close to each other to close the mouth, but do not close the mouth.
Select the upper edge of oral cavity and drag it out by pushing the shift key.
Target weld these two points to other point which on the other corner. Here I am closing the cavity right now.
Drag the edge on the corner of mouth and clone a new edge, and then target weld to the two points on the outside.
Target weld the last point with the point on the under lip
Now, go to vertex level and adjust all the points.
Draw a plant and upload my photo, modify again by comparing with the shape of my mouth.
Go to the edge level and select the edges on the mouth and oral cavity part, and drag them to the left by pushing the shift key, repeat three times to create the width of mouth, and move the new edge a little bit to backward when it is cloned each time, in order to creating the arc of the mouth. I will adjust this part all the time when I create the mouth.
Modify the upper lip on the vertex level, and make the connection at philtrum and mouth.
Do the same things to the other lip, and adjust all the points to the appropriate position. Latter I will fallow a photo to modify the mouth carefully.
human mouth is usually very rich, so next I am going to add two lines for each of lips between both of them. Select one edge under the upper lip and go to click ring to select all the edge on this level, and then connect them, do it on the other lip as well. Make both line close to each other to close the mouth, but do not close the mouth.
Select the upper edge of oral cavity and drag it out by pushing the shift key.
Target weld these two points to other point which on the other corner. Here I am closing the cavity right now. Drag the edge on the corner of mouth and clone a new edge, and then target weld to the two points on the outside.
Target weld the last point with the point on the under lip
Now, go to vertex level and adjust all the points.
Draw a plant and upload my photo, modify again by comparing with the shape of my mouth.
